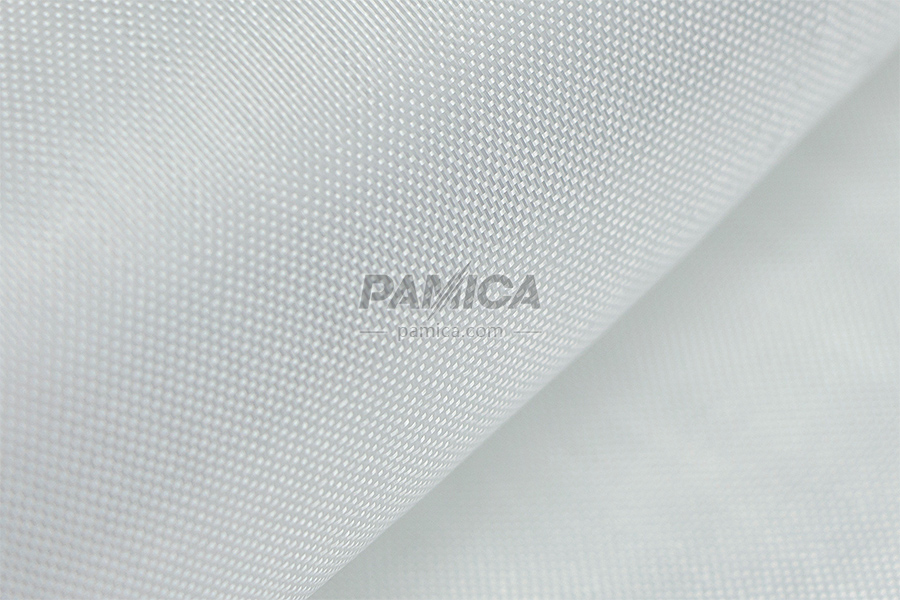

Coated product cloth
Non-alkali glass fiber cloth is a plain, twill, satin or twist weave product which is made by using imported sizing machine, warping machine, air-jet loom, etc. And non-alkali glass fiber spun yarn and woven as a raw material.
Properties:
- Good performance in high heat, flame resistance and insulation
- High performance in tensile strength
- Good Fabric stiffness, good flatness
- Decay resistance
- Low density, low dielectric constant, low dielectric losses
- Good resin impregnation
Application
The product possess the characteristics of waterproof, flame retardant, fireproof, mildew and corrosion resistance, aging resistance, high temperature resistance, good thermal insulation, high mechanical strength, good structural stability, etc. It is widely used in the coating of various materials,and construction materials, sports equipment, wind power and other fields.
Coated product cloth
| Type | Weave Type |
Thread Count (ends/cm) |
Thickness
(mm)
|
Width
(cm)
|
Mass per unit area
(g/m2)
|
Strength≥N/25mm | ||
| (Warp) | (Weft) | (Warp) | (Weft) | |||||
| EW100 | PLAIN | 20±2 | 20±2 | 0.100±0.010 | 90-127 | 100±10 | 490 | 490 |
| EW140 | PLAIN | 16±1 | 12±1 | 0.140±0.015 | 90-127 | 135±15 | 550 | 400 |
| EW140B | PLAIN | 12±1 | 12±1 | 0.140±0.015 | 90-127 | 145±15 | 500 | 400 |
| EW200 | PLAIN | 16±1 | 12±1 | 0.190±0.015 | 90-127 | 200±20 | 700 | 600 |
| EW230 | PLAIN | 15±1 | 10±2 | 0.20±0.015 | 90-127 | 220±20 | 700 | 500 |
| EW140B | PLAIN | 12±1 | 12±1 | 0.140±0.015 | 90-127 | 145±15 | 500 | 400 |
| EW200 | PLAIN | 16±1 | 12±1 | 0.190±0.015 | 90-127 | 200±20 | 700 | 600 |
Woven roving
| Type | Weave Type |
Thread Count (ends/cm) |
Thickness
(mm)
|
Width
(cm)
|
Mass per unit area
(g/m2)
|
Strength≥N/25mm | ||
| (Warp) | (Weft) | (Warp) | (Weft) | |||||
| EW100 | PLAIN | 20±2 | 20±2 | 0.100±0.010 | 90-127 | 100±10 | 490 | 490 |
| EW140 | PLAIN | 16±1 | 12±1 | 0.140±0.015 | 90-127 | 135±15 | 550 | 400 |
| EW140B | PLAIN | 12±1 | 12±1 | 0.140±0.015 | 90-127 | 145±15 | 500 | 400 |
| EW200 | PLAIN | 16±1 | 12±1 | 0.190±0.015 | 90-127 | 200±20 | 700 | 600 |
| EW230 | PLAIN | 15±1 | 10±2 | 0.20±0.015 | 90-127 | 220±20 | 700 | 500 |
Note: These technical data are average results of laboratory tests conducted under standard procedures and are subject to variations, and do not
constitute a warranty or representation for which we assure legal responsibility.
