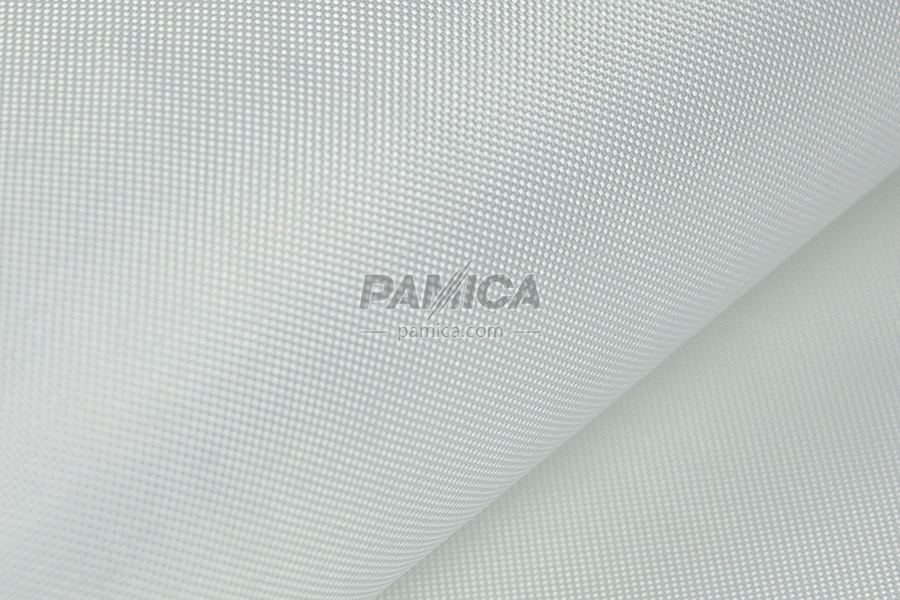

E- glass fabric for insulating board
Non-alkali glass fiber cloth is a plain, twill, satin or twist weave product which is made by using imported sizing machine, warping machine, air-jet loom, etc. And non-alkali glass fiber spun yarn and woven as a raw material.
Properties:
- Good performance in high heat, flame resistance and insulation
- High performance in tensile strength
- Good Fabric stiffness, good flatness
- Decay resistance
- Low density, low dielectric constant, low dielectric losses
- Good resin impregnation
Application

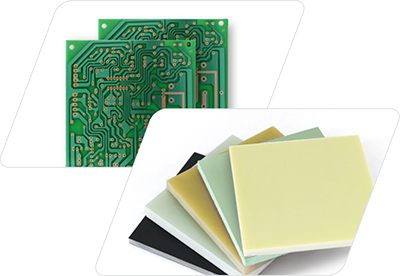

The product can be used as a reinforcing material for glass varnished cloth, glass cloth laminates, copper-clad substrates, etc. The product possess the characteristics of high strength, corrosion resistance, and adapt to various resin impregnations, good electrical insulation performance, etc. It is widely used in power generation equipment, 5G communication, UHV transmission and transformation, smart grid, new energy, rail transit and many other fields.
E- glass fabric for insulating board
| Type | Weave Type |
Thread Count (ends/cm) |
Thickness
(mm)
|
Width
(cm)
|
Mass per unit area
(g/m2)
|
Strength≥N/25mm | ||
| (Warp) | (Weft) |
(Warp) |
(Weft) | |||||
| EW100 | PLAIN | 20±2 | 20±2 | 0.100±0.010 | 90-127 | 100±10 | 490 | 490 |
| EW140 | PLAIN | 16±1 | 12±1 | 0.140±0.015 | 90-127 | 135±15 | 550 | 400 |
| EW140B | PLAIN | 12±1 | 12±1 | 0.140±0.015 | 90-127 | 145±15 | 500 | 400 |
| EW200 | PLAIN | 16±1 | 12±1 | 0.190±0.015 | 90-127 | 200±20 | 700 | 600 |
| EW230 | PLAIN | 15±1 | 10±2 | 0.20±0.015 | 90-127 | 220±20 | 700 | 500 |
| EW140B | PLAIN | 12±1 | 12±1 | 0.140±0.015 | 90-127 | 145±15 | 500 | 400 |
| EW200 | PLAIN | 16±1 | 12±1 | 0.190±0.015 | 90-127 | 200±20 | 700 | 600 |
Electronic fabric
| Type | Weave Type |
Thread Count (ends/cm) |
Thickness
(mm)
|
Width
(cm)
|
Mass per unit area
(g/m2)
|
Strength≥N/25mm | ||
| (Warp) | (Weft) | (Warp) | (Weft) | |||||
| EW100 | PLAIN | 20±2 | 20±2 | 0.100±0.010 | 90-127 | 100±10 | 490 | 490 |
| EW140 | PLAIN | 16±1 | 12±1 | 0.140±0.015 | 90-127 | 135±15 | 550 | 400 |
| EW140B | PLAIN | 12±1 | 12±1 | 0.140±0.015 | 90-127 | 145±15 | 500 | 400 |
| EW200 | PLAIN | 16±1 | 12±1 | 0.190±0.015 | 90-127 | 200±20 | 700 | 600 |
| EW230 | PLAIN | 15±1 | 10±2 | 0.20±0.015 | 90-127 | 220±20 | 700 | 500 |
Note: These technical data are average results of laboratory tests conducted under standard procedures and are subject to variations, and do not
constitute a warranty or representation for which we assure legal responsibility.
