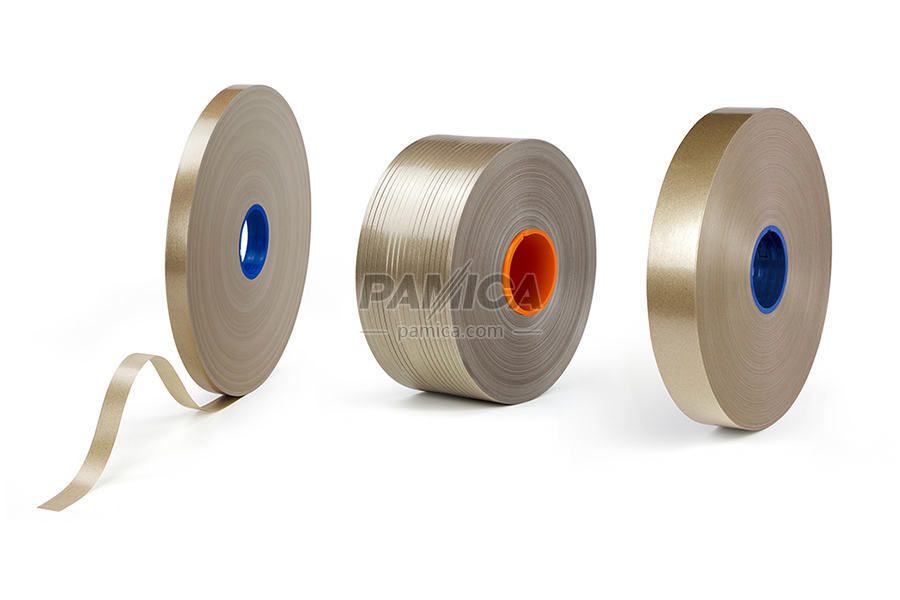

Firwo®-P series phlogopite mica tape for fire-resistant wire & cable, an electrical and thermal insulation material,consists of phlogopite mica paper, enhanced by glass fiber cloth or film, impregnated with high temperature resistant silicone resin. It can be applied to ordinary or high temperature fire-resistant wire & cables
Technical Datas | Firwo® - PG single side glass reinforced | ||||
Type | P80G32 | P100G32 | P120G32 | P140G32 | P160G32 |
Thickness (mm) | 0.10±0.015 | 0.11±0.015 | 0.125±0.015 | 0.13±0.015 | 0.14±0.015 |
Total substance (g/m2) | 125±9 | 148±9 | 172±11 | 193±11 | 216±11 |
Mica content (g/m2) | 80±3 | 100±3 | 120±5 | 140±5 | 160±5 |
Glass content (g/m2) | 32±3 | 32±3 | 32±3 | 32±3 | 32±3 |
Film content (g/m2) | ~ | ~ | ~ | ~ | ~ |
Bond content (g/m2) | 13±3 | 16±3 | 20±3 | 21±3 | 24±3 |
Breakdown voltage(kV/layer) | >1.0 | >1.1 | >1.2 | >1.4 | >1.4 |
Tensile strength (N/cm) | >120 | >120 | >120 | >120 | >120 |
Technical Datas | Firwo®-PF film reinforced |
Firwo®-PGD double sides glass reinforced |
Firwo®-PGF glass and film reinforced |
||||
Type | P120F25 | P160F25 | P140GD42 | P160GD42 | P120GF46 |
P140GF46 |
P160GF46 |
Thickness (mm) | 0.12±0.015 | 0.14±0.015 | 0.15±0.02 | 0.17±0.02 | 0.14±0.02 |
0.15±0.02 |
0.16±0.02 |
Total substance (g/m2) | 158±11 | 201±11 | 202±13 | 225±13 | 181±12 |
203±12 |
226±13 |
Mica content (g/m2) | 120±5 | 160±5 | 140±5 | 160±5 | 120±5 |
140±5 |
160±5 |
Glass content (g/m2) | ~ | ~ | 42±4 | 42±2 | 25±2 |
25±2 |
25±2 |
Film content (g/m2) | 25±3 | 25±3 | ~ | ~ | 18±2 |
18±2 |
18±2 |
Bond content (g/m2) | 13±3 | 16±3 | 20±4 | 23±4 | 18±3 |
20±3 |
23±4 |
Breakdown voltage(kV/layer) | >5.0 | >5.5 | >1.6 | >2.0 | >3.0 |
>3.0 |
>3.0 |
Tensile strength (N/cm) | >110 | >120 | >120 | >120 | >120 |
>120 |
>120 |
