Synthetic mica paper
Synthetic mica paper

Synthetic mica paper

by Pamica/ on 2020-01-21

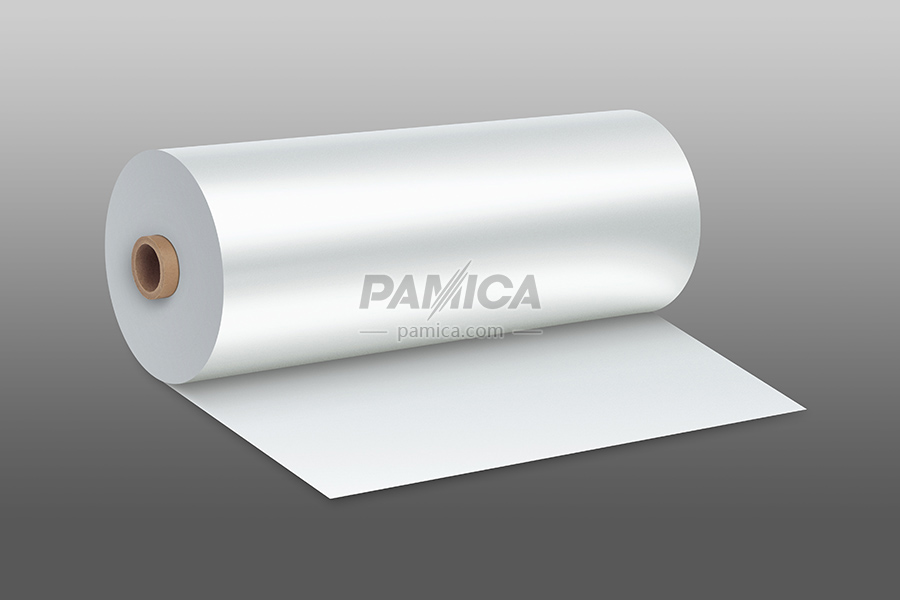

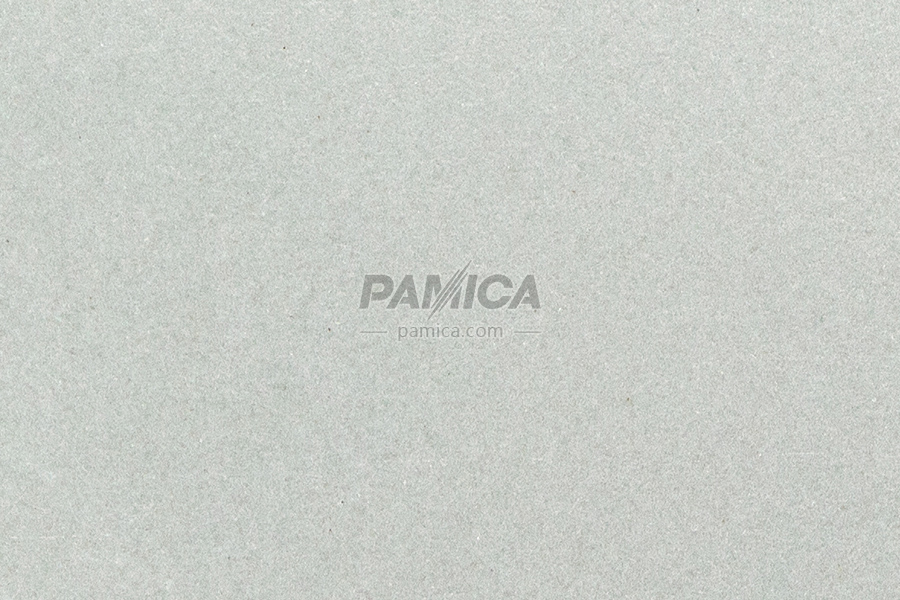

Yunshui® Synthetic mica paper is made from artificial mica as raw material, which has higher temperature resistance, good permeability and breathability than natural mica. It can be impregnated and pressed with organic silicone resin to form high-quality plate-like temperature resistant insulation materials. It can also be combined with fiberglass cloth, thin film, and ceramic fibers through organic silicone resin impregnation to form rolls or strips of high-temperature resistant insulation materials. It is suitable for mica tapes, mica boards, and other special high-end fields.

Properties:
  • Temperature resistance above 900 ℃.
Synthetic mica paper for fire-resistant mica tape

Q/：S506
GB.：MPS5
IEC.：MPS

Nominal value Average
tolerance 		Individual
tolerance 		Air porosity Penetration Conductivity of
water extract 		Mass loss Tensile strength Dielectric strength
(g/m2) (%) (%) (S/100ml) (Time) (μS/㎝) (%) (N/㎝) (KV/㎜)
80 ±3 ±4 ≤180 ≤8 10 0.4 ≥2 ≥14
100 ±3 ±4 ≤180 ≤8 10 0.4 ≥2 ≥14
120 ±3 ±4 ≤250 ≤16 10 0.4 ≥2.5 ≥14
130 ±3 ±4 ≤250 ≤16 10 0.4 ≥2.5 ≥14
140 ±3 ±4 ≤250 ≤20 10 0.3 ≥3.0 ≥14
160 ±3 ±4 ≤350 ≤20 10 0.3 ≥3.0 ≥14

Note: These technical data are average results of laboratory tests conducted under standard procedures and are subject to variations, and do not

constitute a warranty or representation for which we assure legal responsibility.
